MM74C14M 15V SOP14 Hex Schmitt Trigger FAIRCHILD MOS

Name: MM74C14M 15V SOP14 Hex Schmitt Trigger FAIRCHILD MOS
Brand: FAIRCHILD
Price: 1 USD

Brand Name : FAIRCHILD

Model Number : MM74C14M

Certification : CE/ RoHS

Place of Origin : USA

MOQ : 10pcs

Price : To be negotiated

Payment Terms : T/T, Western Union ,paypal

Supply Ability : 10,000PCS

Delivery Time : in stock 2-3days

Packaging Details : Reel

pn : MM74C14M

brands : FAIRCHILD

original : USA

voltage range : 3.0V to 15V

Operating Temperature : −55°C to +125°C

Absolute Maximum : VCC 18V

Contact Now

MM74C14M Hex Schmitt Trigger 15V Max SOP14 FAIRCHILD USA Original

Features

■ Wide supply voltage range: 3.0V to 15V

■ High noise immunity: 0.70 VCC (typ.)

■ Low power: TTL compatibility: 0.4 VCC (typ.): 0.2 VCC guaranteed

■ Hysteresis: 0.4 VCC (typ.): 0.2 VCC guaranteed

General Description

The MM74C14 Hex Schmitt Trigger is a monolithic complementary

MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistors.

The positive and negative going threshold voltages VT+ and VT−,

show low variation with respect to temperature (typ. 0.0005V/°C at VCC = 10V),

and hysteresis, VT+ − VT− ≥ 0.2 VCC is guaranteed.

All inputs are protected from damage due to static discharge by diode clamps to VCC and GND.

Absolute Maximum Ratings(Note 1)

Voltage at Any Pin −0.3Vto VCC + 0.3V

Operating Temperature Range −55°C to +125°C

Storage Temperature Range −65°C to +150°C

Power Dissipation Dual-In-Line 700 mW

Small Outline 500mW Operating VCC Range 3.0V to 15V

Absolute Maximum VCC 18V

Lead Temperature (Soldering, 10 seconds) 260°C

Note 1:

“Absolute Maximum Ratings” are those values beyond

which the safety of the device cannot be guaranteed.

Except for “Operating Tempera ture Range”

they are not meant to imply that the devices should be operated at these limits.

The Electrical Characteristics tables provide conditions for actual device operation.

MM74C14M 15V SOP14 Hex Schmitt Trigger FAIRCHILD MOS

Deli electronics tehcnology Co.,Ltd
Email:sales3@deli-ic.com
Skype:hkdeli881
Contact: VIVI-CHEN

Product Tags:

MM74C14M Hex Schmitt Trigger

SOP14 Hex Schmitt Trigger

15V MOS Integrated Components

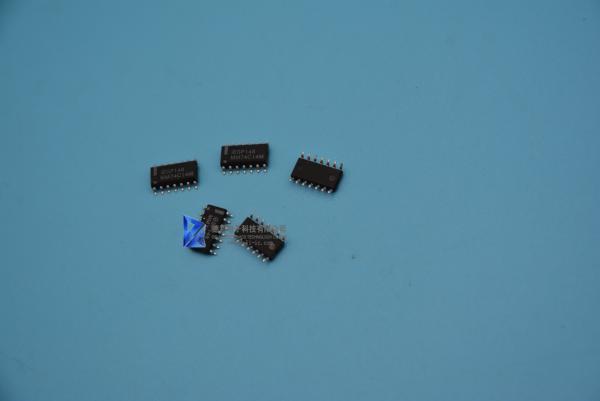

MM74C14M 15V SOP14 Hex Schmitt Trigger FAIRCHILD MOS Images
